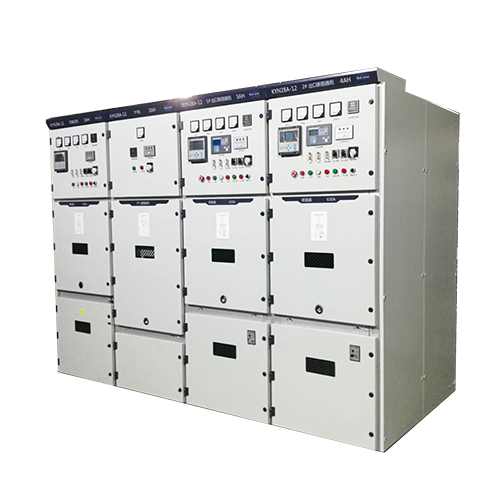

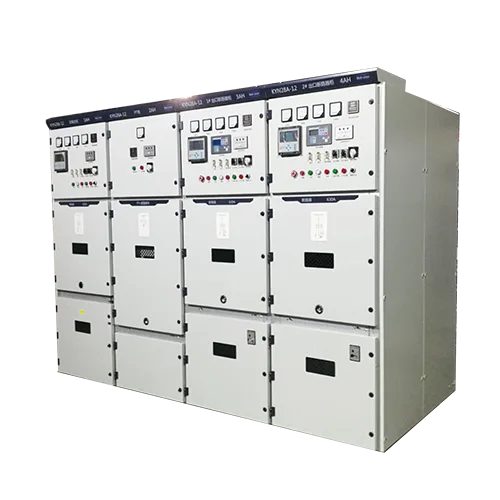

LV Switchgear
Low Voltage Switchgear
Basic Overview of Low Voltage Switchgear:
Voltage Range:
Medium Voltage switchgear is designed for applications in the voltage range of 1KV to 35KV. This range is crucial for systems that require more power transmission than low voltage but do not necessitate the high voltage of major power transmission networks.
Construction and Design:
MV switchgear typically consists of circuit breakers, disconnectors, earth switches, and other control equipment. It is designed to be robust and durable, often housed in metal-enclosed cabinets. The design can vary from fixed type to withdrawable units, depending on the application.
Protection and Control:
The primary function of MV switchgear is to protect and control the power distribution system. This includes interrupting overcurrents and short circuits, thereby protecting transformers, motors, and other components. It also allows for safe maintenance and operation of the electrical network.
Typical Applications of Low Voltage Switchgear:
Industrial Plants:
MV switchgear is widely used in industrial settings like manufacturing plants, processing facilities, and large commercial complexes. It manages the distribution of electrical power within these facilities.
Utility Substations:
It is a critical component in electrical substations, where it helps in stepping down high voltage from transmission lines to levels suitable for distribution networks.
Products Features
Reliability and Durability:
Safety Features:
| Model | Current (A) |
|---|---|
| GEP200 | 200 |
| GEP400 | 400 |
| GEP630 | 630 |
| GEP800 | 800 |
| GEP1000 | 1000 |
| GEP1250 | 1250 |
| GEP1600 | 1600 |
| GEP2000 | 2000 |
| GEP2500 | 2500 |
| GEP3200 | 3200 |
| GEP4000 | 4000 |
| GEP5000 | 5000 |
| GEP6000 | 6000 |
